RS-485 HUB

4-port RS-485 hub

Model: ADM-2542
Baud rate: 300BPS-115.2KBPS
Power supply : DC9~48V
Protection level: 15KV ESD protection
Product description: Industrial isolation 4-port RS-485 hub, with 1 ch RS-232 or 1 ch RS-485 to 4 ch RS-485 function, DC9~48V power supply, DIN rail installation, in the industrial automatic communication.
INQUIRY

Product introduction

ADM-2542 is Isolated 4-Ports RS-485 bus Hub. The baud rate supports the maximum 115.2kbps, RS-485 interface adopts photoelectric isolation technology, built-in photoelectric isolator and 600W surge protection circuit, which can provide 1500V isolation voltage and effectively suppress lightning and ESD. RS-485 can automatically judge the direction of the data stream, and automatically switch and control.

ADM-2542 supports star structure RS-485 bus connection, every port has short circuit and open circuit protection, users can easily improve RS-485 bus structure, divide sub network and improve communication reliability. When the device fails, the port of the failure will be isolated to ensure that the other ports are working properly. This design greatly improves the reliability of the RS-485 network and effectively shortens the maintenance time of the network. ADM-2542 RS-485 HUB can help you design a highly reliable RS-485 system.

Product specification
Model: ADM-2542
Standards: RS-232 and RS-485 EIA/TIA
Functions: RS-232/RS-485 to 4 Ports RS-485 Hub
Up Interface: 1-Port RS-485 and 1-Port RS-232 (3 wire)
Down Interface: 4-Ports RS-485
Isolation voltage: Isolation voltage 1.5KV，600W Surge protection
RS-232 Trans distance: 10 meters (Max)
RS-485 Trans distance: 1000 meters (Max)
Data rate: 300 to 115200 Bps
Interface protection: 15KV ESD Protection
RS-485 load capacity: 128 nodes (Max)
Power supply: 9 to 48VDC, 200mA @12V，with power reverse connection protection
Operation mode: Half duplex, automatic flow direction
Working temperature: -20 ~ 75 ℃
Storage temperature: -20 ~ 85 ℃
Working humidity: 0 ~ 90% RH

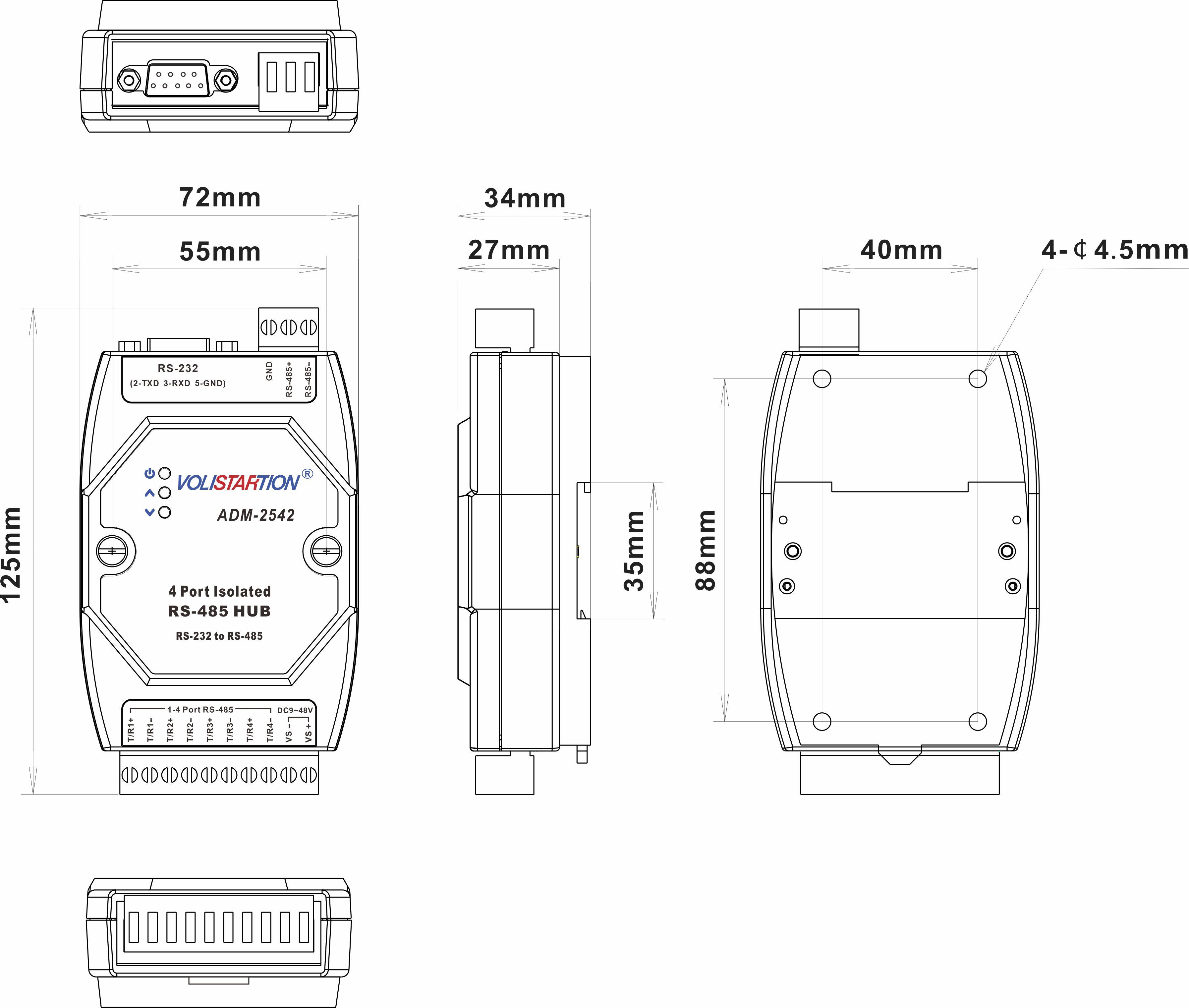

Shape size: (L x W x H) 125x72x34mm

Interface definition

UP	*Definition*	*DOWN*	*Definition*
DB9(2)	RS-232(TXD)	T/R1+	1-Port RS-485+
DB9(3)	RS-232(RXD)	T/R1-	1-Port RS-485-
DB9(5)	RS-232(GND)	T/R2+	2-Port RS-485+
RS-485+	Master RS-485+	T/R2-	2-Port RS-485-
RS-485-	Master RS-485-	T/R3+	3-Port RS-485+
GND	NC	T/R3-	3-Port RS-485-
		T/R4+	4-Port RS-485+
		T/R4-	4-Port RS-485-
		VS-	POWER-
		VS+	POWER+
