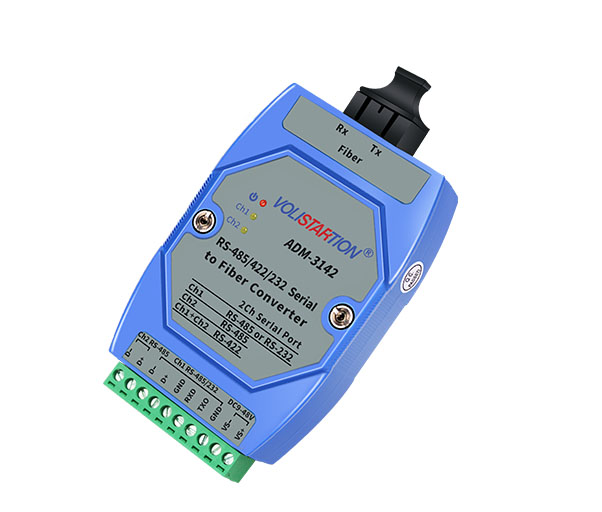

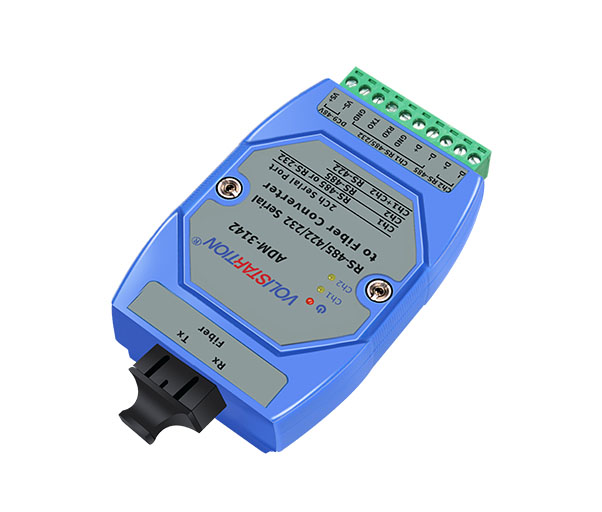

Product introduction

The ADM-3142 series is a serial port to optical fiber converter, which has the ability to transform serial ports (RS-232 or RS422/485) and optical fiber (multimode or single mode) signals. The ADM-3142 interface converter can extend the transmission distance of the serial port to a maximum of2 km(multi-mode fiber) or20 km(single-mode fiber).

ADM-3142 serial port fiber MODEM can connect remote terminal unit (RTU) to host (HOST) or data acquisition system (SCADA), support PPI, MODBUS and other communication protocols.35 mmstandard rail installation, DC9~48V power supply, excellent performance, work stability, can meet the industrial environment.

Product features

1. Fiber interface support double fiber (SC/ST/FC) or single fiber (SC/ST/FC)

2. Serial port support 2Ch RS485 or 1Ch RS422 or 1Ch RS232 interface

3. When used, it can be one side RS-232, one side RS-485

4. Zero delay automatic forwarding, asynchronous point to point transmission

5. Automatic detection serial port rate

6. RS485 rate 0~250Kbps, RS232 rate 0~115.2Kbps

7. Interface provides 600W surge protection, 15KV ESD protection

8. DC9~48V power supply

9.35 mmDIN rail installation

Product specification

Interface:                 EIA RS-232, RS-485, RS-422 standard

Rate:                 RS-485/422:0~250Kbps, RS232: 0~115.2Kbps

Distance:                  RS-232<10m, RS-485/422<1000m

Load capacity:       RS485 supports up to 32 terminal polling methods

Fiber interface:          single fiber or double fiber (SC/FC/ST)

Fiber distance:          multi-mode 0-2 km, single-mode 0-20 km

Power supply:         DC9~48V power supply, DC12V@150MA (Max)

Operating temperature:             -20 to 75 DEG C

Dimensions:                       L103xW72xH27 (mm)

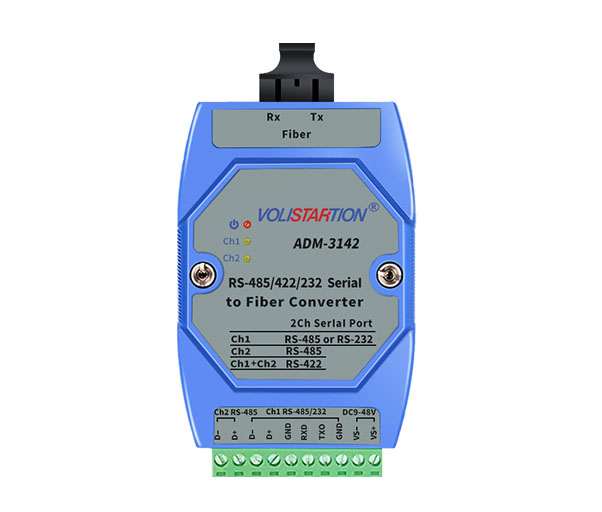

Connection definition

Note: ADM-3142 provides 2 channels of independent RS-485 interface, which can be used as a channel RS-422. Channel 1 supports RS-485 or RS-232, channel 2 supports RS-485, channel 1 and channel 2 constitute RS-422.

LED instructions

Note: CH1 and CH2 are always bright, which means that optical fibers are not connected.

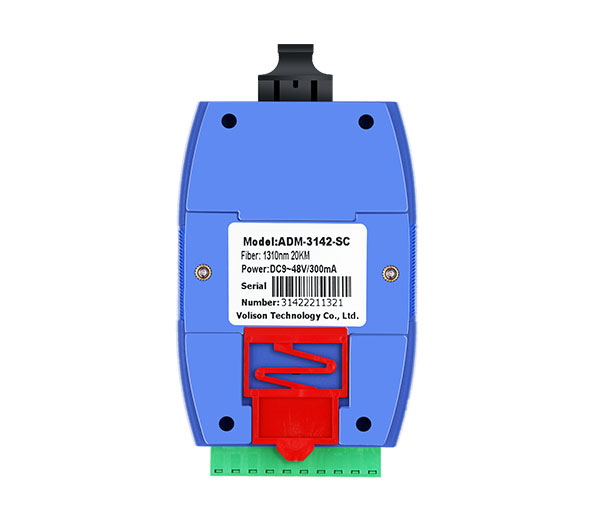

Model definition

ADM-3142-SC    Double fiber SC interface, single mode fiber and multimode fiber

ADM-3142-FC     Double fiber FC interface, single mode fiber and multimode fiber

ADM-3142-ST     Double fiber ST interface, single mode fiber and multimode fiber

ADM-3142-SC1    Single fiber SC interface, only using single-mode fiber

ADM-3142-FC1    Single fiber FC interface, only using single-mode fiber

ADM-3142-ST1    Single fiber ST interface, only using single-mode fiber
