Product introduction

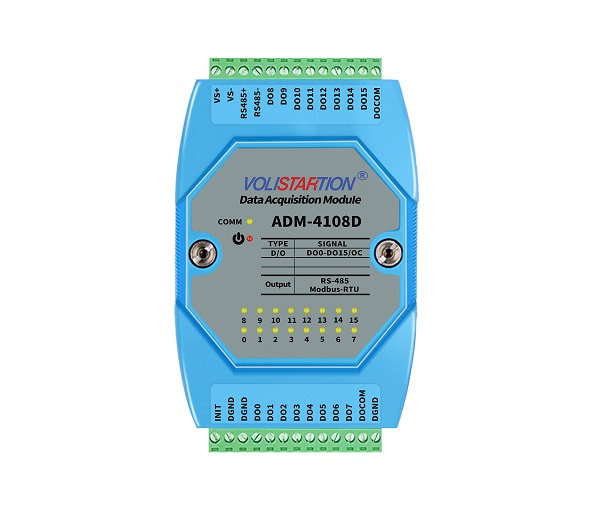

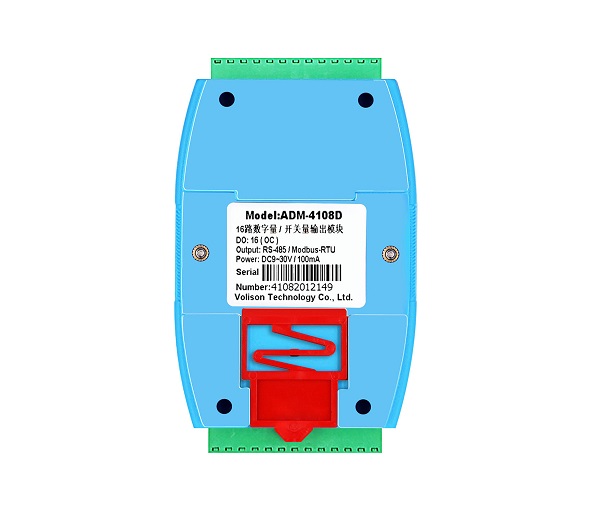

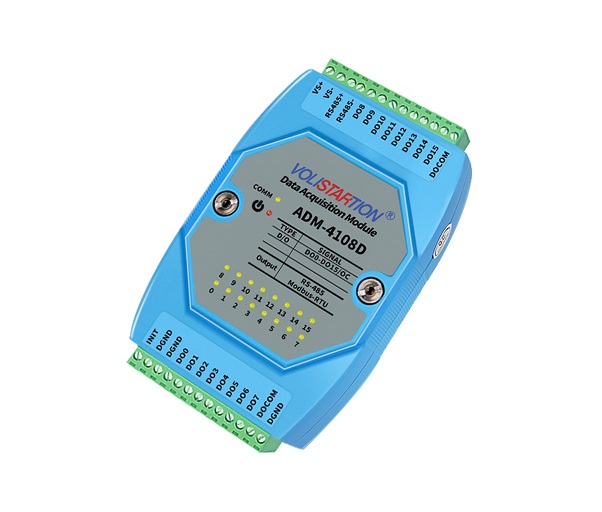

ADM-4108D is 16 channel isolated digital output module, which is used in the signal control of industrial device. Support 16 channel NPN (Sink) type Darlington transistor output, 200mA rated collector current and 40V collector-emitter voltage output. RS-485 communication interface, support the MODBUS RTU protocol, can connect configuration software, PLC, DCS industrial control touch screen.
Product specification
Switching Output
1. Output channel: 16 channel NPN Darlington transistor output (Sink)
2. Load voltage: 40V Max
3. Load current: 200mA Max
Communication interface
1. Communication protocol: MODBUS-RTU
2. Interface type: RS-485 interface
3. Interface protection: 600W surge, 15KV ESD, 1500V isolation protection
4. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200
5. Parity：None, even, odd
6. Default: 9600, N, 8, 1 (modifiable)
System parameter
1. Module size:104mmx72mmx 26mm
2. Installation:35mmDIN-rail installation
3. Environment: temperature: -20~70℃humidity: 0-95%, not condensing
4. Power supply: DC9~30V is less than 3W
LED indicator definition
1. POWER: power status indication, "bright" power supply is normal.
2. COMM: RS-485 communication indication, that "flash" is sending and receiving data.
3. DO0~DO15: Digital output indication, "bright" output is 1.
Using the default communication parameters
When you forget the baud rate, parity bit, ID, etc. You can short circuit the INIT and DGND, and then power on. The module will use the initial values (9600, N, 8, 1, ID 1) to communicate with the master station.
When INIT and DGND pin is disconnected, the module will use user-defined parameters to communicate with the master station.
