100M Switche

2-Port Ethernet fiber

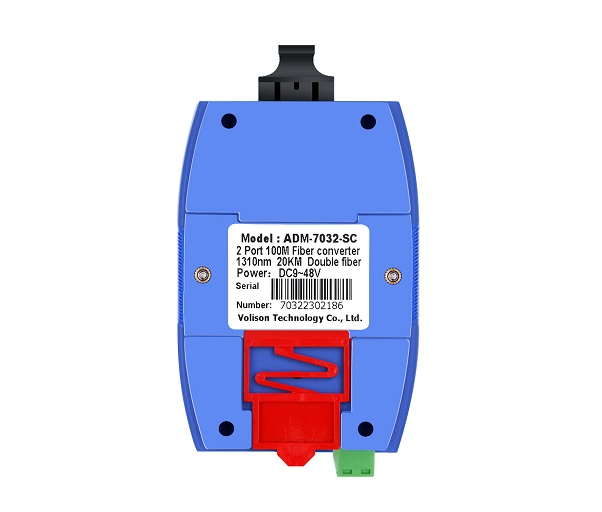

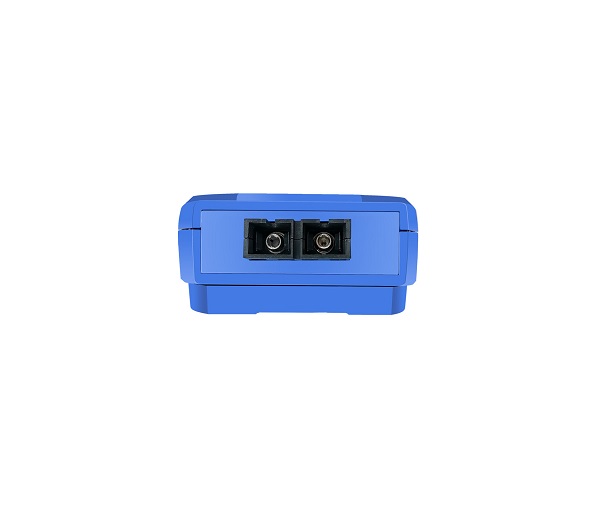

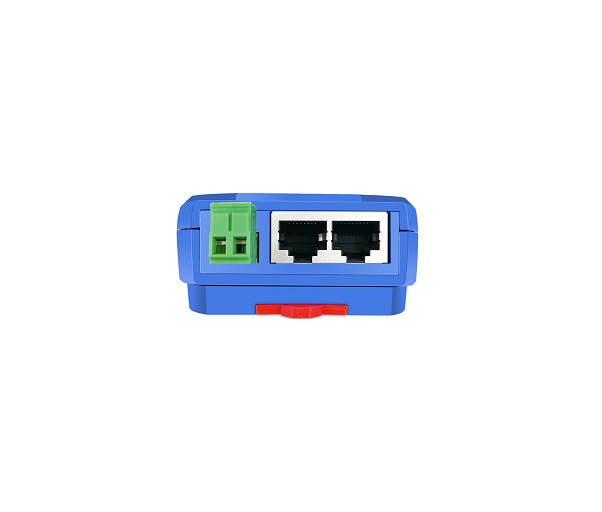

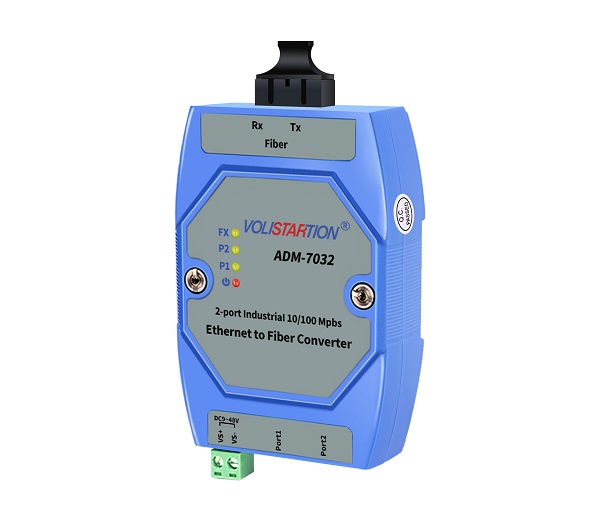

Model: ADM-7032
1-port 100Base-FX fiber port
2-port 10/100BaseT(X) RJ45 connector
9 to 48 VDC single power input
Product description: The ADM-7032 is entry-level industrial 3-port (1-port fiber and 2-port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ4
INQUIRY

Product introduction

The ADM-7032 is entry-level industrial 3-port (1-port fiber and 2-port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The ADM-7032 switch is rated to operate at temperatures ranging from -20 to 75 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, DC24V power supply, LED indicators make the plug-and-play ADM-7032 switches easy to use and reliable.

Product features
1-port 100Base-FX fiber port
2-port 10/100BaseT(X) RJ45 connector
IEEE802.3/802.3u/802.3x support
10/100Mbps auto negotiation
Supports full-duplex or half-duplex negotiation
9 to 48 VDC single power input
DIN-rail mounting ability
Industrial Ethernet standard
Product specification
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX
RJ45 Port: 2-ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X
Fiber Port: 1-port 100Base-FX (with optional SC, ST, FC)
LED indication: PWR, FX port Link/Act, RJ-45 port Link/Act
Fiber mode: Multi-mode 50/125, 62.5/125μm,Single-mode 9/125, 10/125μm
Fiber Trans distance: Multi-mode: 2 Km Single-mode: 20 Km
Voltage input: DC9~48V, 120mA @ 24V (Max)( Reverse polarity protection)
Installation: 35mm DIN-Rail
Dimension (L x W x H): 136×72×34 (mm)
Operating temperature: -20 ℃ ～ 75 ℃
Storage temperature: -40 ℃ ～ 85 ℃
Relative humidity: 0～95% (non-condensing)

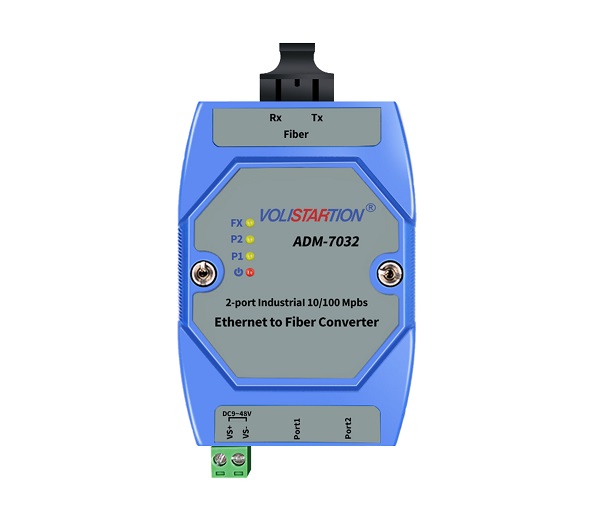

Interface definition

Power	VS+: Power positive, VS-: Power negative
Ethernet	Port1, Port2
Optic	Fiber
LED	P1,P2,FX Link/Act

Model definition

ADM-7032-SC Double fiber SC interface, single mode fiber and multimode fiber
ADM-7032-FC Double fiber FC interface, single mode fiber and multimode fiber
ADM-7032-ST Double fiber ST interface, single mode fiber and multimode fiber
ADM-7032-SC1 Single fiber SC interface, only using single-mode fiber（Customization required）
ADM-7032-FC1 Single fiber FC interface, only using single-mode fiber（Customization required）

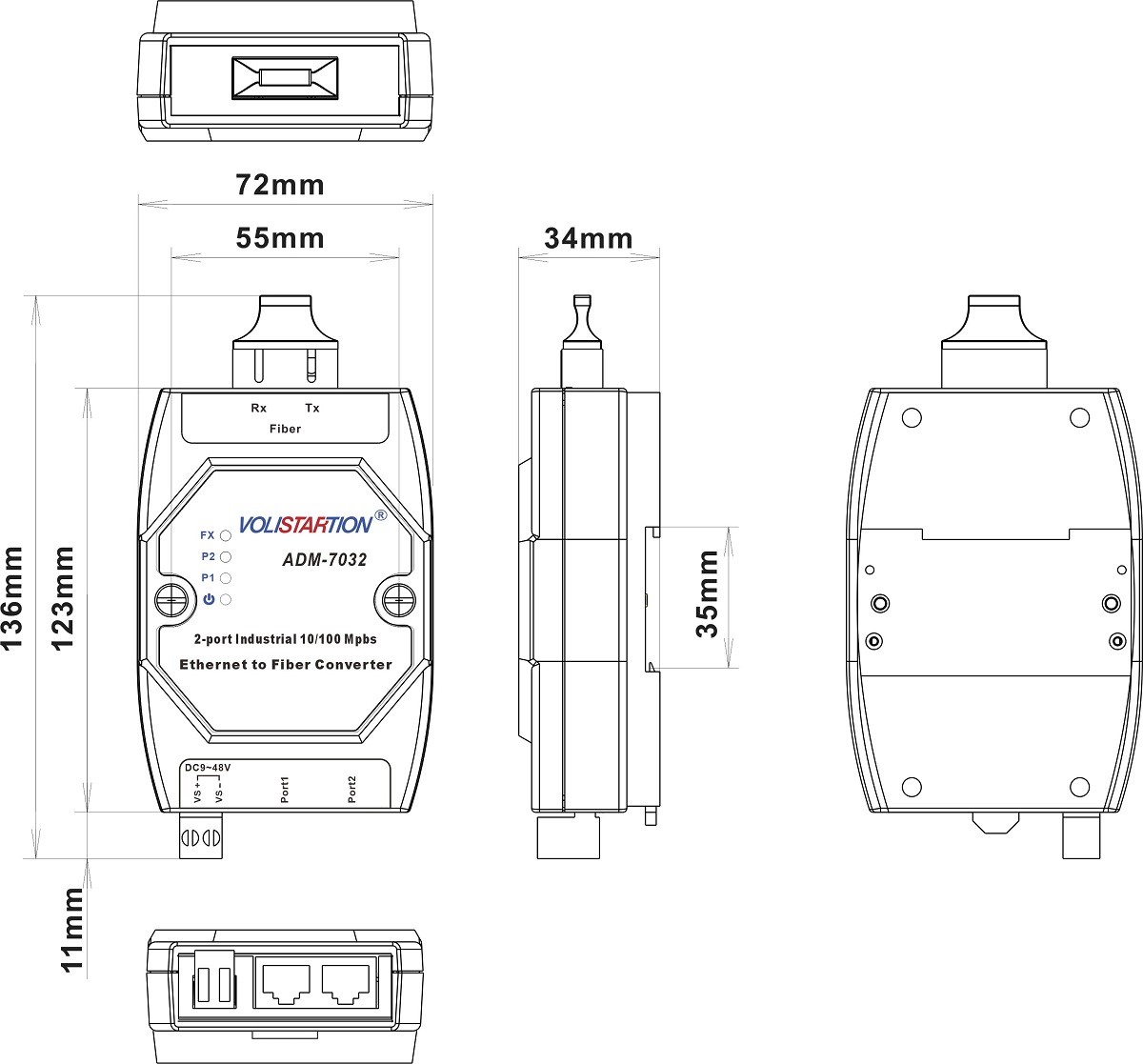

Dimension drawing (mm)
