Product introduction

The IDM-7150 industrial Ethernet switch is entry-level industrial 5-port Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The IDM-7150 switch is rated to operate at temperatures ranging from -20 to 75 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, DC24V or AC24V power supply, LED indicators make the plug-and-play IDM-7150 switches easy to use and reliable.

Product features

5-port 10/100BaseT(X) (RJ45 connector)

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC9~36V Double redundant input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:                                   IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X)

Ports:                                           5-ports 10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X

MAC table size:                           2K

LED indication:                            PWR1, PWR2, 1-5 RJ-45 ports link

Voltage input:                              AC18~30V or DC9~36V, 100mA @ 24V (Max)

Reverse polarity protection:        Yes

Installation:                                  35mmDIN-Rail

Dimension (W x H x D):              125×27.6×89 (mm)

Operating temperature:               -20 ℃～75℃

Storage temperature:                  -40 ℃～85 ℃

Relative humidity:                        0～95% (non-condensing)

Interface definition

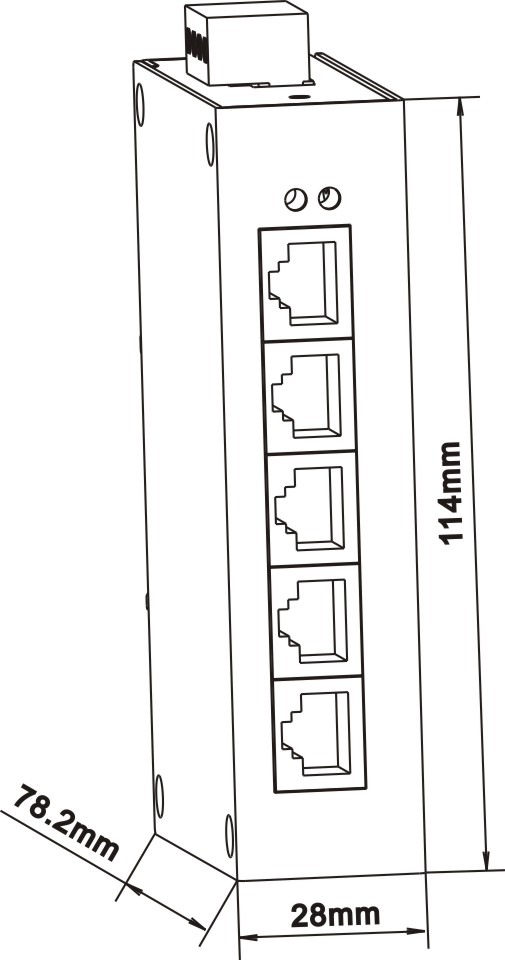

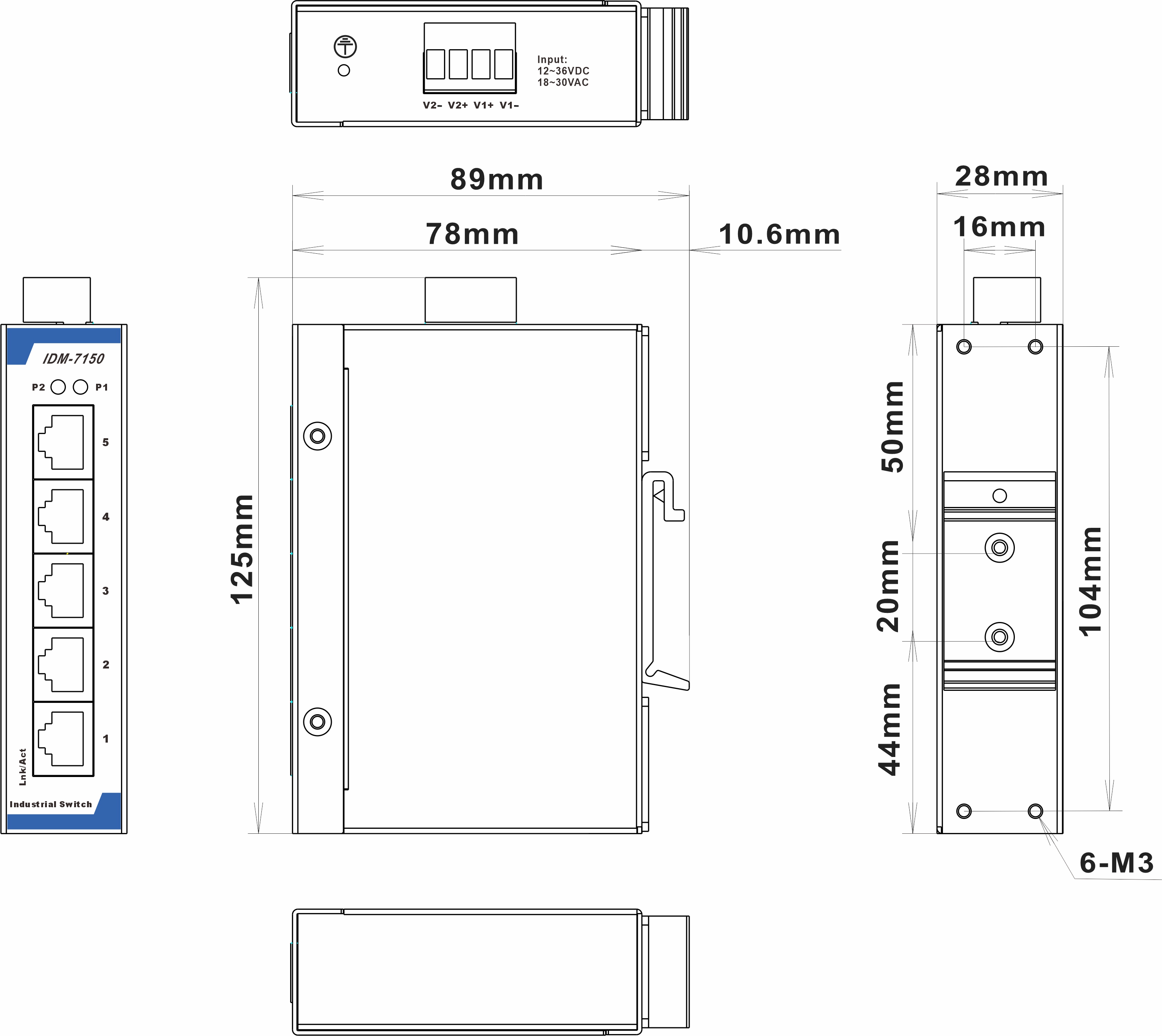

Dimension drawing (mm)
