Product introduction

The IDM-7192 is entry-level industrial 9-port (1-port fiber and 8-port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The IDM-7192 switch is rated to operate at temperatures ranging from -20 to 75°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, AC24V or DC24V power supply, LED indicators make the plug-and-play IDM-7192 switches easy to use and reliable.

Product features

1-port 100Base-FX fiber port

8-port 10/100BaseT(X) RJ45 connector

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC9~36V Double redundant input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:                               IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX

RJ45 Port:                               8-ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X

FiberPort:                                1-port 100Base-FX (with optional SC, ST, FC)

LED indication:                        PWR1, PWR2, FX port Link/Act, RJ-45 port Link/Act

Fiber mode:                             Multi-mode 50/125, 62.5/125μm,Single-mode 9/125, 10/125μm

Fiber Trans distance:               Multi-mode:2 KmSingle-mode:20 Km

Voltage input:                           AC18~30V or DC9~36V Double redundant input 200mA @ 24V (MAX)

Installation:                              35mmDIN-Rail

Dimension (L x W x H):          125×49.6×111 (mm)

Operating temperature:           -20 ℃～75℃

Storage temperature:              -40 ℃～85 ℃

Relative humidity:                   0～95% (non-condensing)

Interface definition

IDM-7192-SC      Double fiber SC interface, single mode fiber and multimode fiber

IDM-7192-FC      Double fiber FC interface, single mode fiber and multimode fiber

IDM-7192-ST      Double fiber ST interface, single mode fiber and multimode fiber

IDM-7192-SC1    Single fiber SC interface, only using single-mode fiber

IDM-7192-FC1    Single fiber FC interface, only using single-mode fiber

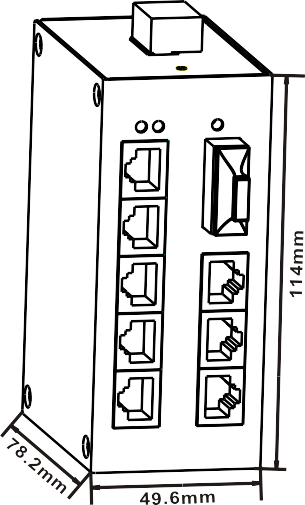

Dimension drawing (mm)
