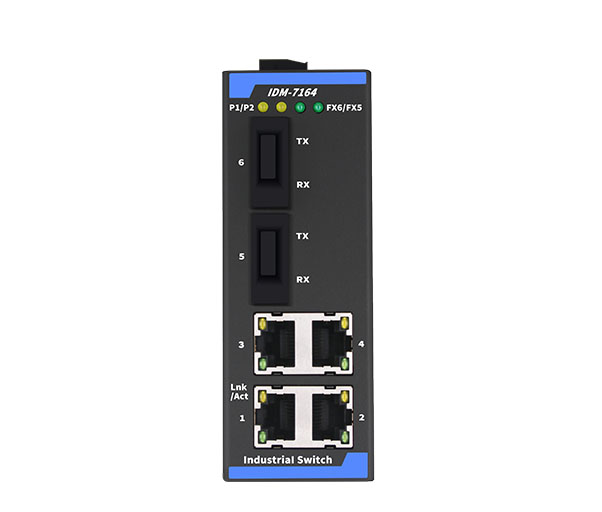

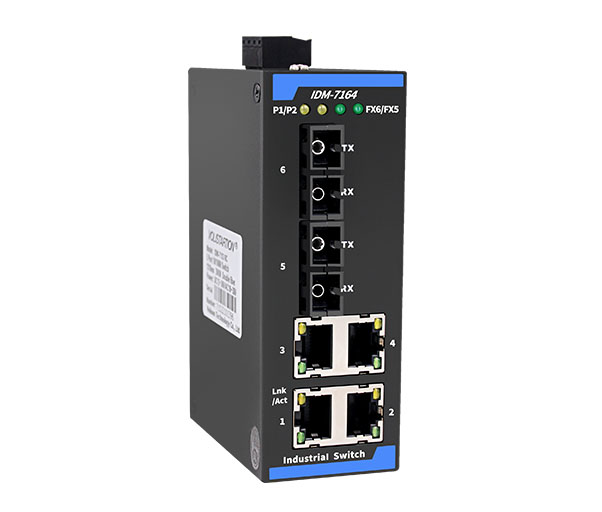

Product introduction

The IDM-7164 is entry-level industrial 6-Port (2-Port fiber and 4-Port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The IDM-7164 switch is rated to operate at temperatures ranging from -20 to 75 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, AC24V or DC24V power supply, LED indicators make the plug-and-play IDM-7164 switches easy to use and reliable.

Product features

2-Port 100Base-FX fiber port

4-Port 10/100BaseT(X) RJ45 connector

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC9~36V Double redundant input

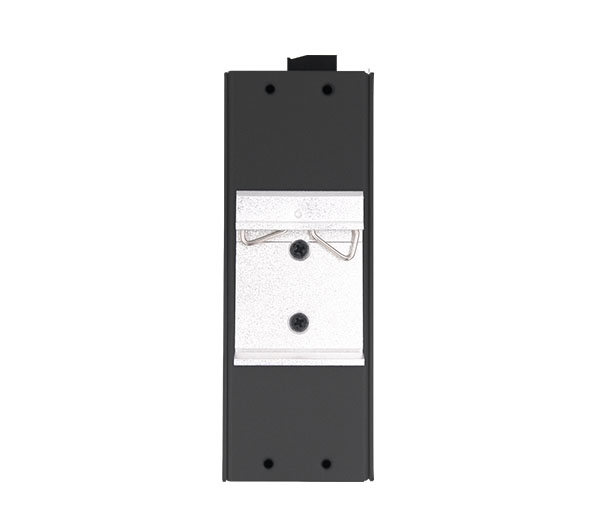

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:                                 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX

RJ45 Port:                                  4-Ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X

FiberPort:                                   2-Port 100Base-FX (with optional SC, ST, FC)

Bandwidth:                                 1.6G

MAC table size:                          2 K

LED indication:                           PWR1, PWR2, FX port Link/Act, RJ-45 port Link/Act

Fiber mode:                                Multi-mode 50/125, 62.5/125μm,Single-mode 9/125, 10/125μm

Fiber Trans distance:                   Multi-mode:2   KmSingle-mode:20 Km

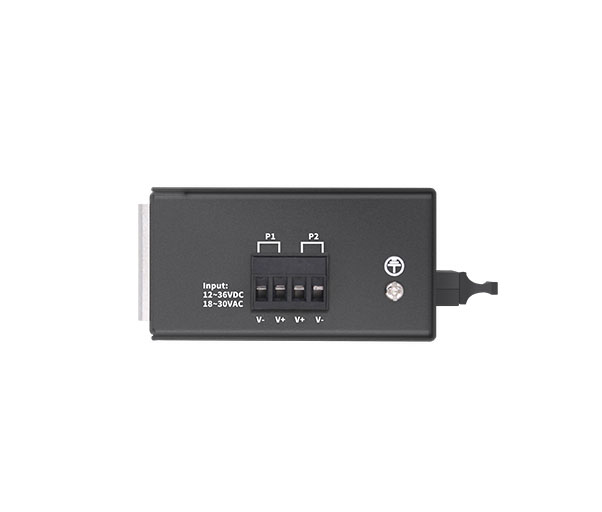

Voltage input:                              AC18~30V or DC9~36V Double redundant input 200mA @ 24V (Max)

Installation:                                 35mmDIN-Rail

Dimension (L x W x H):               125×42×111(mm)

Operating temperature:               -20 ℃～75℃

Storage temperature:                  -40 ℃～85 ℃

Relative humidity:                       0～95% (non-condensing)

Interface definition

Model definition

IDM-7164-SC      Double fiber SC interface, single mode fiber and multimode fiber

IDM-7164-FC      Double fiber FC interface, single mode fiber and multimode fiber

IDM-7164-ST      Double fiber ST interface, single mode fiber and multimode fiber

IDM-7164-SC1    Single fiber SC interface, only using single-mode fiber

IDM-7164-FC1    Single fiber FC interface, only using single-mode fiber

Dimension drawing (mm)
