Product introduction

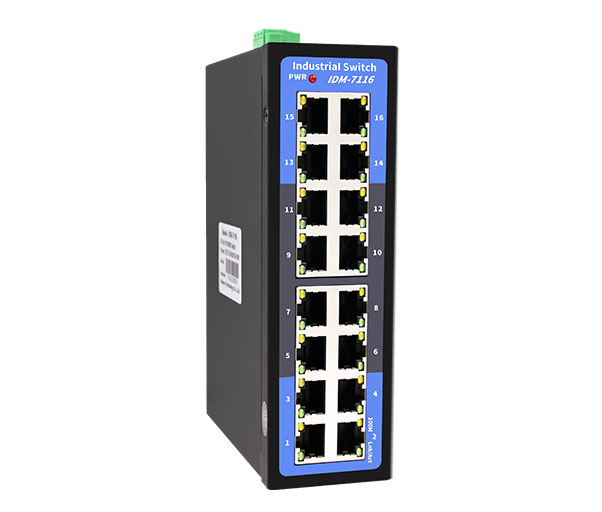

The IDM-7116 industrial Ethernet switch is entry-level industrial 8-port Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The IDM-7116 switch is rated to operate at temperatures ranging from -20 to70 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, DC24V or AC24V power supply, LED indicators make the plug-and-play IDM-7116 switches easy to use and reliable.

Product features

16-port 10/100BaseT(X) (RJ45 connector)

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC12~36V input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:          IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X)

Ports: 16-ports 10/100Base-T(X), auto detection, full/half-duplex, auto MDI/MDI-X

MAC table size:                       8 K

LED indication:             PWR, 1-16 RJ-45 ports link

Voltage input:           AC18~30V or DC12~36V, 200mA @ 24V (Max)

Reverse polarity protection:         Yes

Installation:                          35mmDIN-Rail

Dimension (W x H x D):       169×124×47.5 (mm)

Operating temperature:         -20 ℃～70℃

Storage temperature:           -40 ℃～85 ℃

Relative humidity:         5～95% (non-condensing)

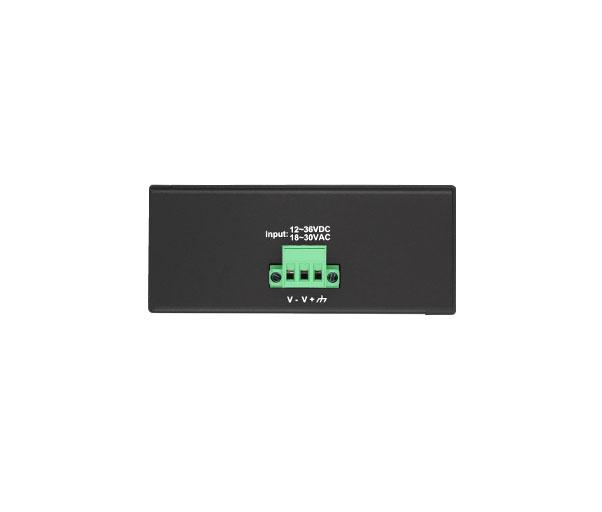

Interface definition
