Product introduction

The IDM-7188 is entry-level industrial 8-Port (4-Port fiber and 4-Port 10/100Mbps RJ-45) Ethernet switch that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports.

The IDM-7188 switch is rated to operate at temperatures ranging from -20 to 75 °C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting, AC24V or DC24V power supply, LED indicators make the plug-and-play IDM-7188 switches easy to use and reliable.

Product features

4-Port 100Base-FX fiber port

4-Port 10/100BaseT(X) RJ45 connector

IEEE802.3/802.3u/802.3x support

10/100Mbps auto negotiation

Supports full-duplex or half-duplex negotiation

AC18~30V or DC12~36V Double redundant input

DIN-rail mounting ability

Industrial Ethernet standard

Product specification

Standards:                                         IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) & 100Base-FX
RJ45 Port:                                         4-Ports 10/100Base-T(X), full/half-duplex, auto MDI/MDI-X
FiberPort:                                          4-Port 100Base-FX (with optional SC, ST, FC)
Bandwidth:                                        1.6G
MAC table size:                                  2 K
LED indication:                                   PWR1, PWR2, FX port Link/Act, RJ-45 port Link/Act
Fiber mode:                                        Multi-mode 50/125, 62.5/125μm,Single-mode 9/125, 10/125μm
Fiber Trans distance:                          Multi-mode:2 Km Single-mode:20 Km
Voltage input:                                     AC18~30V or DC9~36V Double redundant input200mA @ 24V (Max)
Installation:                                        35mmDIN-Rail
Dimension (L x W x H):                      125×46.6×111 (mm)
Operating temperature:                      -20 ℃～75℃
Storage temperature:                         -40 ℃～85 ℃
Relative humidity:                              0～95% (non-condensing)

Interface definition

IDM-7188-SC Double fiber SC interface, single mode fiber and multimode fiber
IDM-7188-FC Double fiber FC interface, single mode fiber and multimode fiber
IDM-7188-ST Double fiber ST interface, single mode fiber and multimode fiber
IDM-7188-SC1 Single fiber SC interface, only using single-mode fiber（Customization required）
IDM-7188-FC1 Single fiber FC interface, only using single-mode fiber（Customization required）

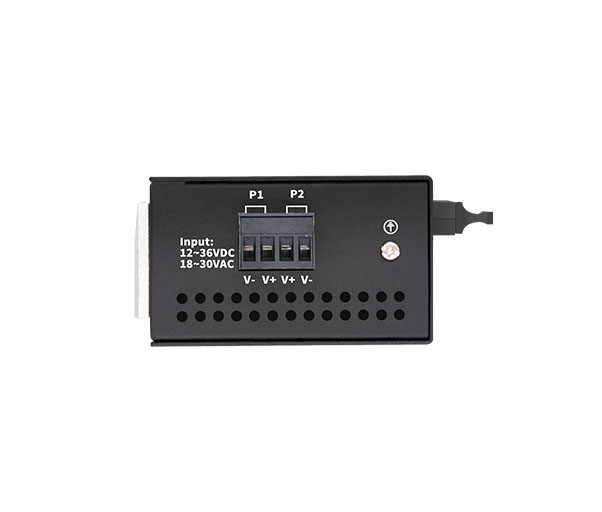

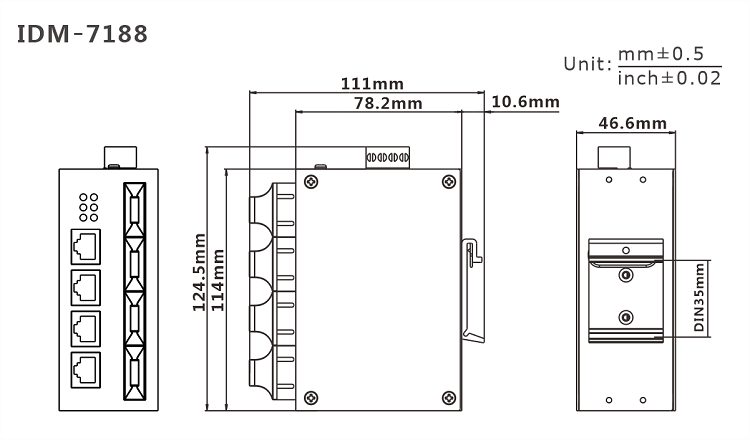

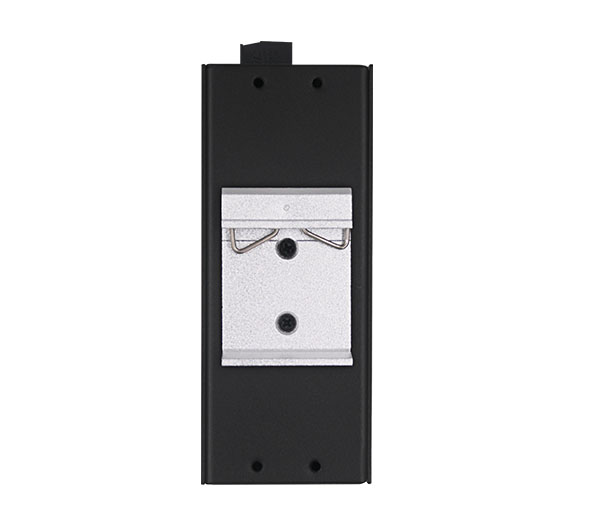

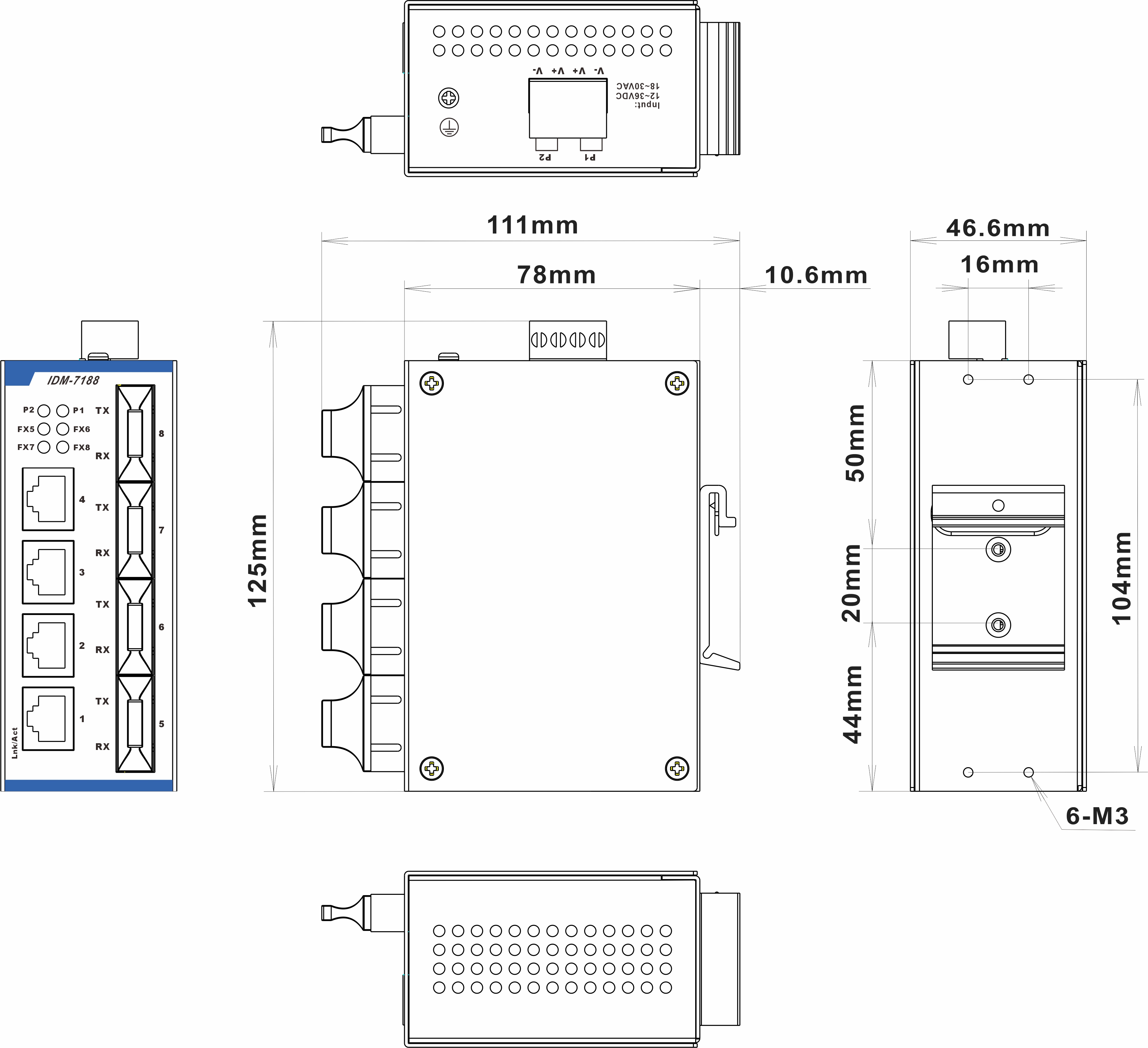

Dimension drawing (mm)
